How to Secure Linux Servers with Fail2Ban

Short introduction

Fail2Ban is a lightweight intrusion prevention framework that reads log files and temporarily bans IPs showing malicious behavior (like repeated SSH failures). This tutorial walks you through installing, configuring, testing, and monitoring Fail2Ban on a Linux server with concrete examples so you can secure services quickly and confidently.

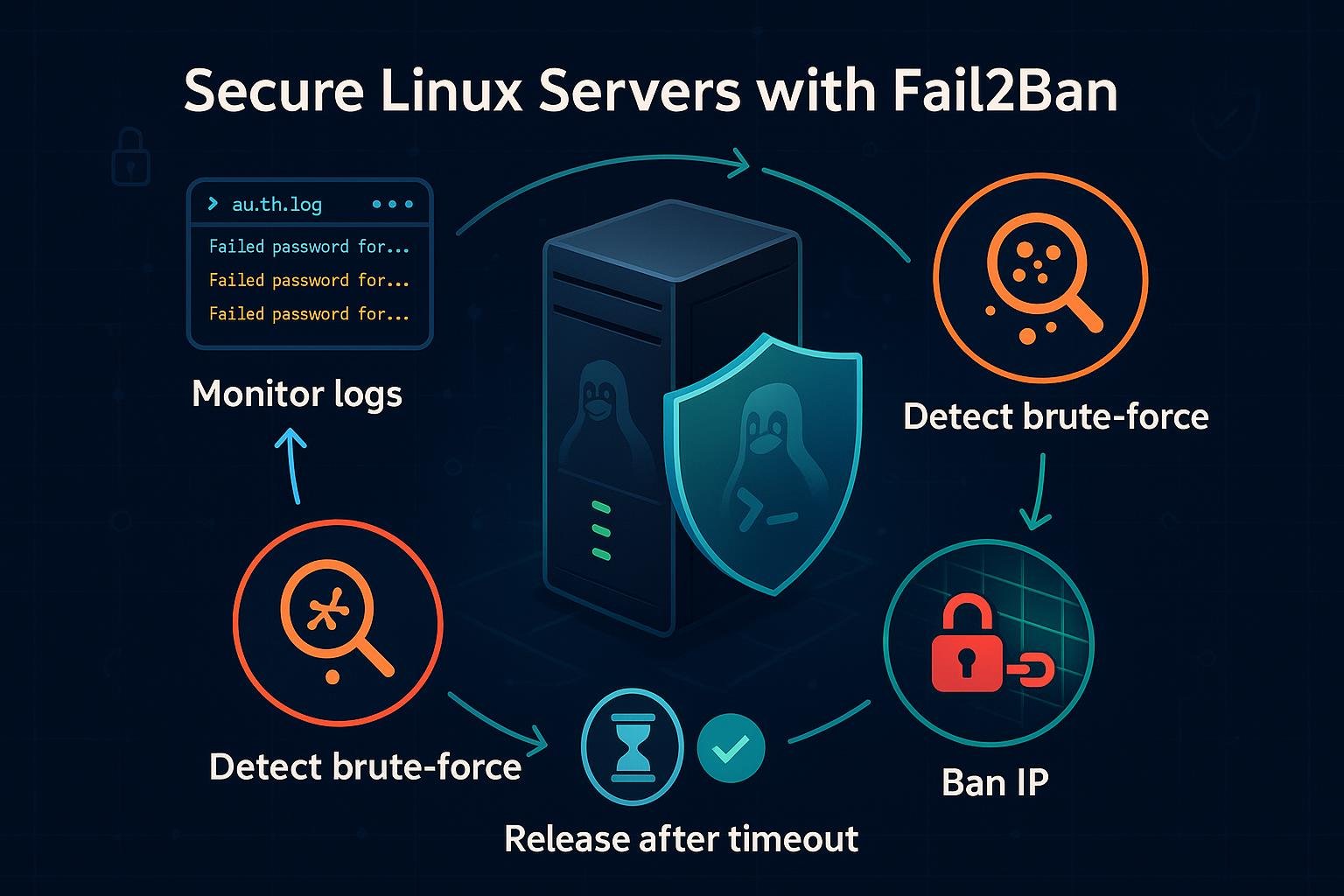

What Fail2Ban Does and How It Works

Fail2Ban monitors log files (e.g., /var/log/auth.log, /var/log/nginx/error.log), applies regular-expression filters to find unwanted patterns, and executes actions when thresholds are reached — most commonly adding a firewall rule to block the offending IP for a period of time.

Key concepts:

• jail: ties a log file, filter, and action together for a service (e.g., sshd).
• filter: a regex-driven definition of what constitutes suspicious log lines.
• action: what to do when a filter trips (usually block with iptables/nftables, send an alert, or run a custom script).

Example: if an IP fails SSH login 5 times within 10 minutes, Fail2Ban can add an iptables reject for 1 hour.

Terminal example: check the running Fail2Ban process and version

# Check service status and version
sudo systemctl status fail2ban
fail2ban-client -V

Install and Start Fail2Ban

Installation is straightforward on most distributions.

Ubuntu/Debian:

sudo apt update
sudo apt install fail2ban -y
sudo systemctl enable --now fail2ban

CentOS/RHEL (with EPEL):

sudo yum install epel-release -y
sudo yum install fail2ban -y
sudo systemctl enable --now fail2ban

After installation, the package provides default configuration files under /etc/fail2ban. Never edit the packaged jail.conf — create/join overrides in jail.d/ or a local file.

Verify the service:

# Check that Fail2Ban is active
sudo systemctl status fail2ban

# List active jails (may be empty initially)
sudo fail2ban-client status

If the service fails to start, check the journal:

sudo journalctl -u fail2ban --no-pager

Configure Jails and Filters (Practical Examples)

Create local overrides instead of modifying packaged configs. Use /etc/fail2ban/jail.local or create files in /etc/fail2ban/jail.d/*.conf.

Simple SSH jail example (/etc/fail2ban/jail.d/ssh.local):

[sshd]
enabled = true
port    = ssh
filter  = sshd
logpath = /var/log/auth.log
maxretry = 5
findtime = 600
bantime = 3600
action = iptables-multiport[name=sshd, port="ssh", protocol=tcp]

To add a custom filter (e.g., for a custom service), create /etc/fail2ban/filter.d/myservice.conf:

[Definition]
failregex = ^%(__prefix_line)sAuthentication failure for .* from <HOST>$
ignoreregex =

Test filters against log samples before enabling:

# Test a filter against a log file
sudo fail2ban-regex /var/log/auth.log /etc/fail2ban/filter.d/sshd.conf

# Test a custom regex with a sample log
echo "Authentication failure for user from 1.2.3.4" | sudo fail2ban-regex - /etc/fail2ban/filter.d/myservice.conf

Reload configuration after changes:

sudo systemctl reload fail2ban
# or use the client to reload jails
sudo fail2ban-client reload

Enable jails on-the-fly:

sudo fail2ban-client start sshd          # start the sshd jail
sudo fail2ban-client stop sshd           # stop the sshd jail
sudo fail2ban-client status sshd         # show status and banned IPs for sshd

Monitoring, Troubleshooting, and Commands Table

Monitoring Fail2Ban helps you confirm it's blocking the right IPs and that no false positives exist. Use the fail2ban-client tool and check logs.

Useful commands (examples):

# Show all jails
sudo fail2ban-client status

# Show details for the sshd jail
sudo fail2ban-client status sshd

# List currently banned IPs for a jail
sudo fail2ban-client status sshd | grep 'Banned IP list' -A 2

# Unban an IP
sudo fail2ban-client set sshd unbanip 1.2.3.4

Commands table

Example: using fail2ban-regex to verify your new filter picks up attacks

# Create a small sample log and test the filter
cat <<EOF > /tmp/sample.log
Apr 10 12:00:01 server sshd[1234]: Failed password for invalid user admin from 203.0.113.5 port 55432 ssh2
Apr 10 12:00:02 server sshd[1234]: Failed password for invalid user admin from 203.0.113.5 port 55433 ssh2
EOF

sudo fail2ban-regex /tmp/sample.log /etc/fail2ban/filter.d/sshd.conf

Troubleshooting tips:

• If a jail isn't matching, increase logging verbosity and review the exact log lines — timestamps or prefixes can affect regex matches.
• Make sure logpath points to the actual log file used by the service (systemd services sometimes log via journalctl).
• If your firewall backend is nftables, ensure Fail2Ban is configured for the correct action (iptables vs nftables).

Common Pitfalls

• Editing packaged files (e.g., jail.conf) directly: updates overwrite changes. Use jail.local or jail.d/*.conf instead.
• Misdiagnosing logs: systemd's journal output differs from traditional log files; point fail2ban to the right data source or use fail2ban’s journald support.
• Over-aggressive bans: setting very low maxretry or long bantime can lock out administrators during configuration testing.

Example of a bad configuration snippet (do not use):

# BAD: editing the packaged file and overly aggressive ban
[sshd]
enabled = true
maxretry = 1
bantime = 86400   # bans for 1 day — too long for typical mistakes

Next Steps

• Create and test custom filters for other services you run (web servers, FTP, mail).
• Automate alerts: configure Fail2Ban actions to email admins or integrate with your monitoring system when new bans occur.

Harden SSH: use key-based auth, change the default SSH port, and combine with Fail2Ban for layered defense.

# Example: generate an SSH keypair locally
ssh-keygen -t ed25519 -C "admin@example.com"

Final note: Fail2Ban is a practical, low-friction tool for reducing attack surface. Start with conservative settings, test filters thoroughly, and combine Fail2Ban with good service hardening for best results.
